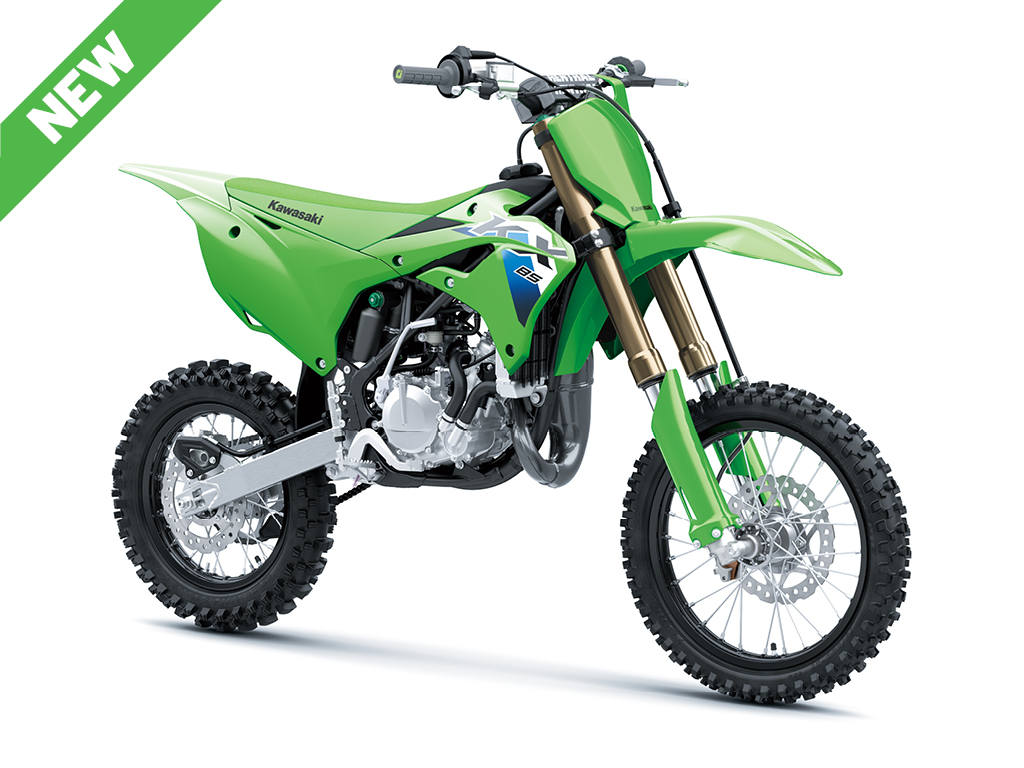

2027 KX85
Model Overview
GREEN GOT TOUGHER
Powered by a proven 84cc engine combined with a chassis designed to maximize engine performance, the KX85 motorcycle is engineered to give young racers a competitive edge. With factory-inspired components and a choice of wheel sizes to accommodate a wider range of riders, these serious race machines help carve the path to the podium.
Total:
£TBC
Model Specification
Specifications
| Engine type | Liquid-cooled, 2-stroke Single with KIPS |
|---|---|
| Displacement | 84 cc |
| Bore x stroke | 48.5 x 45.8 mm |
| Compression ratio | 10.9:1 (low speed); 9.0:1 (high speed) |
| Valve/Induction system | Piston Reed valve |
| Fuel system | Carburettor: Keihin PWK 28 |
| Ignition | Digital CDI |
| Starting | Primary kick |
| Lubrication | Petrol Mix |
| Transmission | 6-speed |
|---|---|
| Final Drive | Chain |
| Primary reduction ratio | 3.400 (68/20) |
| Gear ratios: 1st | 2.538 (33/13) |
| Gear ratios: 2nd | 1.875 (30/16) |
| Gear ratios: 3rd | 1.500 (27/18) |
| Gear ratios: 4th | 1.250 (25/20) |
| Gear ratios: 5th | 1.090 (24/22) |
| Final reduction ratio | 3.643 (51/14) |
| Clutch | Wet multi-disc, manual |
| Gear Ratios: 6th | 0.956 (22/23) |
| Frame type | Perimeter, high-tensile steel |
|---|---|
| Rake/Trail | 29.2º / 103 mm |
| Wheel travel - front | 275 mm |
| Wheel travel - rear | 275 mm |
| Tyre - front | 70/100-17 40M |
| Tyre - rear | 90/100-14 49M |
| Steering angle - left / right | 39° / 39° |
| Suspension - front | 43 mm inverted fork with adjustable compression and rebound damping |
|---|---|
| Suspension - rear | Uni Trak, single shock with adjustable compression and rebound damping and adjustable spring preload |
| Brakes - front | Single 240 mm petal disc. Caliper: Dual-piston |
|---|---|
| Brakes - rear | Single 220 mm petal disc. Caliper: Single-piston |
| Dimensions (L x W x H) | 1,835 x 800 x 1,115 mm |
|---|---|
| Wheelbase | 1,265 mm |
| Ground Clearance | 295 mm |
| Seat height | 830 mm |
| Fuel capacity | 5 Litres |
| Curb Mass | 76.4 kg* | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
